Double Crimping

You’ll find some items on my JEWELRY pages use the double crimp method of starting and finishing a beaded project.  This requires a special crimping tool.  Double crimping is a simple, easy to learn method.  But an even simpler method is to flatten the crimp bead once with a pair of pliers. Although it is an option, I don’t suggest this method because often times the squared edges of the flattened crimp bead can be very sharp and scratch the skin.  I recommend the double crimp because it creates a smoother, more cylindrical finish.

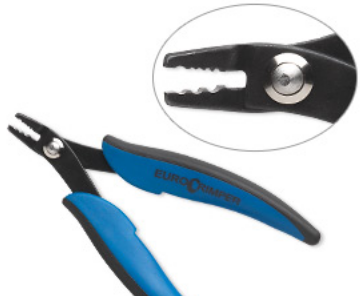

Double Crimp Pliers

Double Crimp Pliers

Crimp Beads/Tubes

Crimp Beads/Tubes

Crimp Ends

Crimp Ends

The first notch of the crimping pliers close to the handles is the first position for the double crimp method. This is where the bead will be crimped into a “u” shape. The bead is then rotated and placed in the upper notch. Here the “U” shape will be closed, creating a more rounded shape.

Crimp beads or tubes come in various sizes to accommodate different thickness in cord and wire and are designed to hold one or more strands of either. To use a crimp bead, slip the cording material into the bead, then through the end of a clasp, and back through the bead. The bead is then crimped.

The difference between a crimp end and a crimp bead is, the crimp end holds and conceals the raw edge of a cord or wire. It is “U” shaped with a loop to which you can attach a clasp or jump ring. When using non metal cording material, place a dot of glue in the center, then position the cord on top.  This will hold the cord from slipping while you secure the crimp with pliers by folding in one side, then the other.

How To Use A Double Crimper




step 1 - Place bead in bottom notch.
step 2 - Squeeze handles so that the protrusion on the right, creates a crimp in the bead.
step 3 - Place bead in top notch, rotate as shown.
step 4 - Squeeze handles causing the bead to fold inward.


Clam Shells

Clam shells are sometimes called bead tips.  They consist of two cups with a hook on one edge to attach to a clasp.  It also has a small hole where the cups meet.  The beading cord is knotted, then threaded into the hole so that the knot lies inside, and the cups are pressed together to enclose it.  I recommend sealing the knot with Krazy Glue before enclosing it to prevent the cord end from eventually fraying and the knot slipping out.

The knot at the start of the strand is always easy to make.  But the one at the end of the strand can be a little trickier.  When all the beads are on the strand, you pass the cord into the clam shell.  At this point, you want to eliminate extra spacing between the clam shell and the beads, and at the same time, tie a knot inside the shell.  Some recommendations I’ve seen for accomplishing this, are to use a pin to slide the knot into position inside the shell, or use pointy nose pliers to help create the knot.  My favorite method is to use a knot tying tool.  Instructions for using the tool are on the package.  It’s simple, effective, and works every time.

clam shell

clam shell

closed clam looks like a silver bead

closed clam looks like a silver bead

knot tying tool

knot tying tool


Screen Shot 2016-08-13 at 2.05.03 PM.png

Cord

Most corded projects on my jewelry pages use Griffin #6 nylon cord which is a sturdy material with a needle attached.  The needle makes it easy to thread through the beads.  All the beads should be moved to the end of the cord without the needle, so that when you cut away your finished work, the needle will still be attached to some cord, available to thread the next project.


Rings

Jump rings are merely circles of metal that are not joined.  Open a jump ring by holding one end stationery and pushing the other end away from you using pliers.  It’s not a good idea to pull at the two sides of a ring as that will change its perfect circular shape.  To close the ring, use the same technique, only this time pull the end back toward you.  It’s important to have the two ends aligned with no space in between them especially if cord is attached to the ring.  Cord can easily slip through a small opening.


Clasps

Clasps come in a huge variety of styles, sizes and materials.  The toggle clasp and lobster clasp are extremely popular because they are so easy to use. While toggle clasps can serve as the closure for a necklace or bracelet they sometimes work as more than a clasp.  Beads can be attached to the ring, creating a decorative focal point for a project.


Making Wire Loops/Eyes

Use spooled wire or nail head pins to make wire loops that will link jewelry pieces together.

step 1 - Using wire cutters, cut jewelry wire to measure about 3”.  Or remove the head from a nail head pin.
step 2 - Grasp the wire about .75” from one end.  Bend the wire into a 90 degree angle.

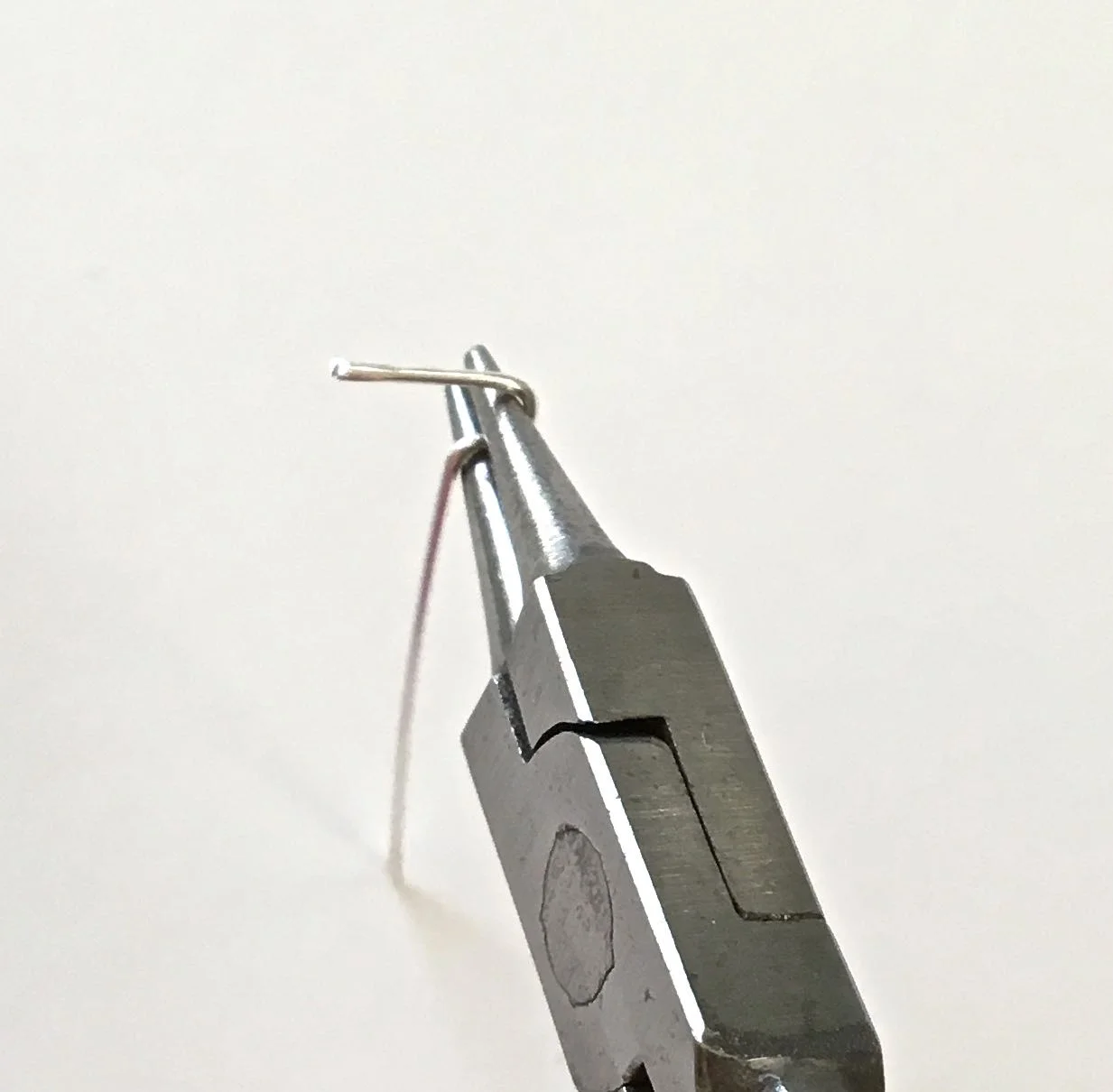

step 3 - With the round nose pliers, grasp the wire firmly at the angle.  With your free hand, wrap the wire’s short end over the top of the pliers so it extends straight out.
step 4 - Remove the pliers and re-position them so the bottom of the tool is seated in the curve you just created.  With your free hand, bend the wire’s short end so it’s pointing straight down.

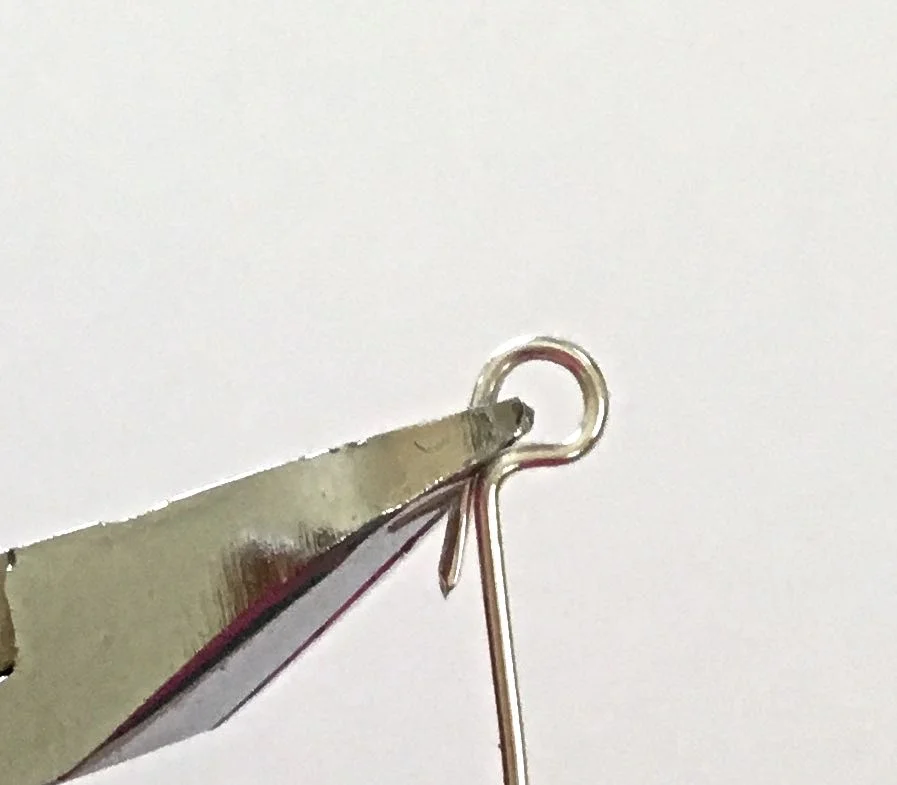

step 5 -  There should now be a tail that extends down past the 90 degree angle.  With the wire cutters, clip the tail off slightly above the point of the angle.

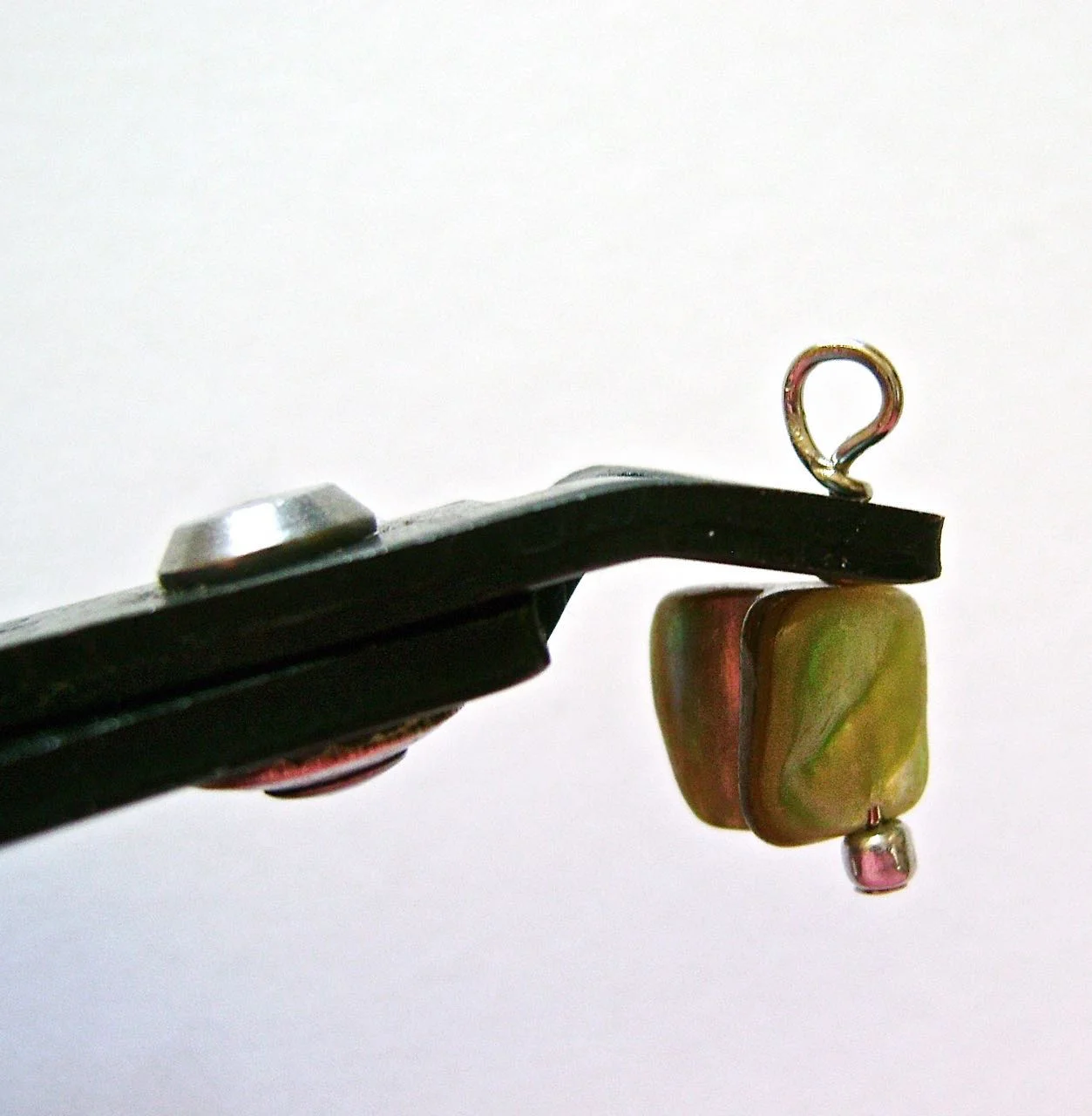

step 6 - With flat nose pliers, firmly grasp only the circle you’ve created.  Do not include the bend of the 90 degree angle.  Pull the straight wire toward the circle opening to close the gap.  This changes the 90 degree angle, closes the opening in the circle, and creates a perfectly round loop/eye at the end of the wire.

step 2

step 2

step 3

step 3

step 4

step 4

step 5

step 5

step 6

step 6



Beaded Loops

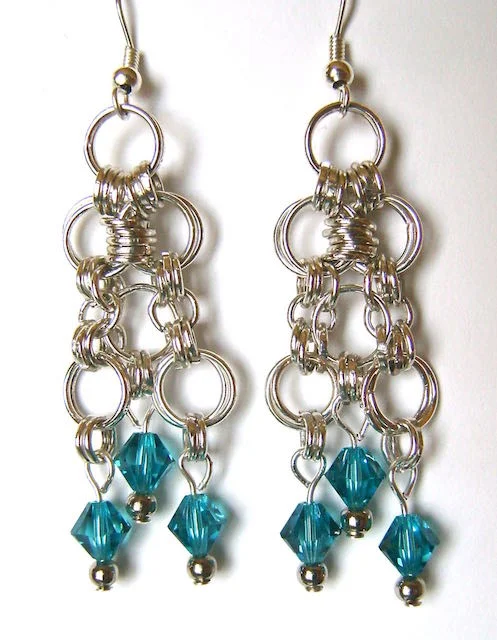

Some projects will require the loop to be made with little or no slack between the loop and a bead as in these earrings.  The usual first step for starting a loop requires pliers bending the wire at a 90 degree angle, which can’t be used in this case because the bead needs to butt against the bend in the wire.  An easy solution is to add the bead to the wire then create the 90 degree angle by placing a sharp edge against the bead and bending the wire. Continue to make the loop following steps 3 through 6 above.  Another solution to eliminating movement of a bead against a loop is to create a wrapped loop.



Eliminate the multiple tools and steps for making loops with the 1-Step Big Looper.  You’ll find it at most craft shops and Amazon.

Wrapped Loops

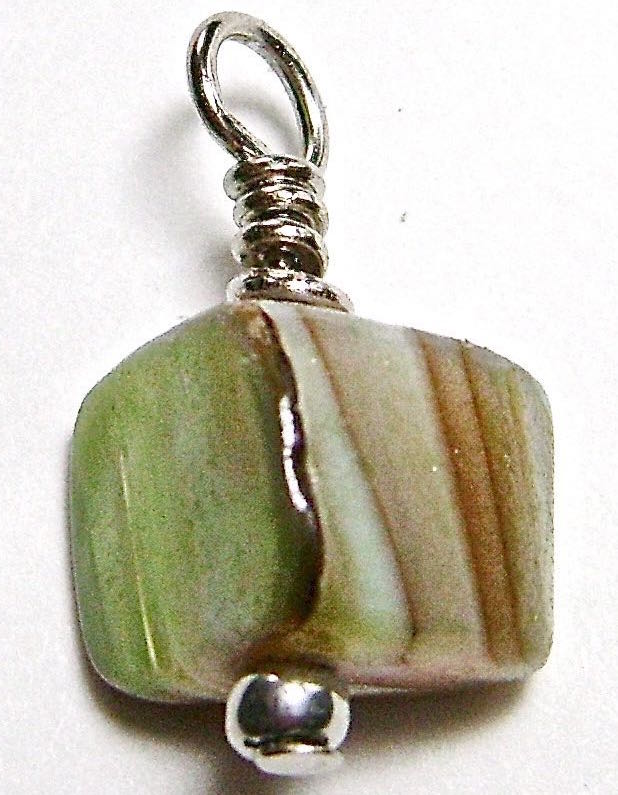

There are many situations where you might want to use wrapped loops instead of a plain loop.  Sometimes a large wrapped loop attached to a beautiful pendant can make a lovely focal point for a necklace.  With designs that call for small beads on nail head wires, you might want the bead to be snug against the nail head so it doesn’t move on the wire.  If the bead is not flush with the nailhead, the heads can catch on clothing.  This is where a wrapped loop is ideal.  I used this technique in my Mixed Shell Bracelet.



step 1 -  Using needle nose pliers, hold the wire firmly above the bead.

step 1 -  Using needle nose pliers, hold the wire firmly above the bead.

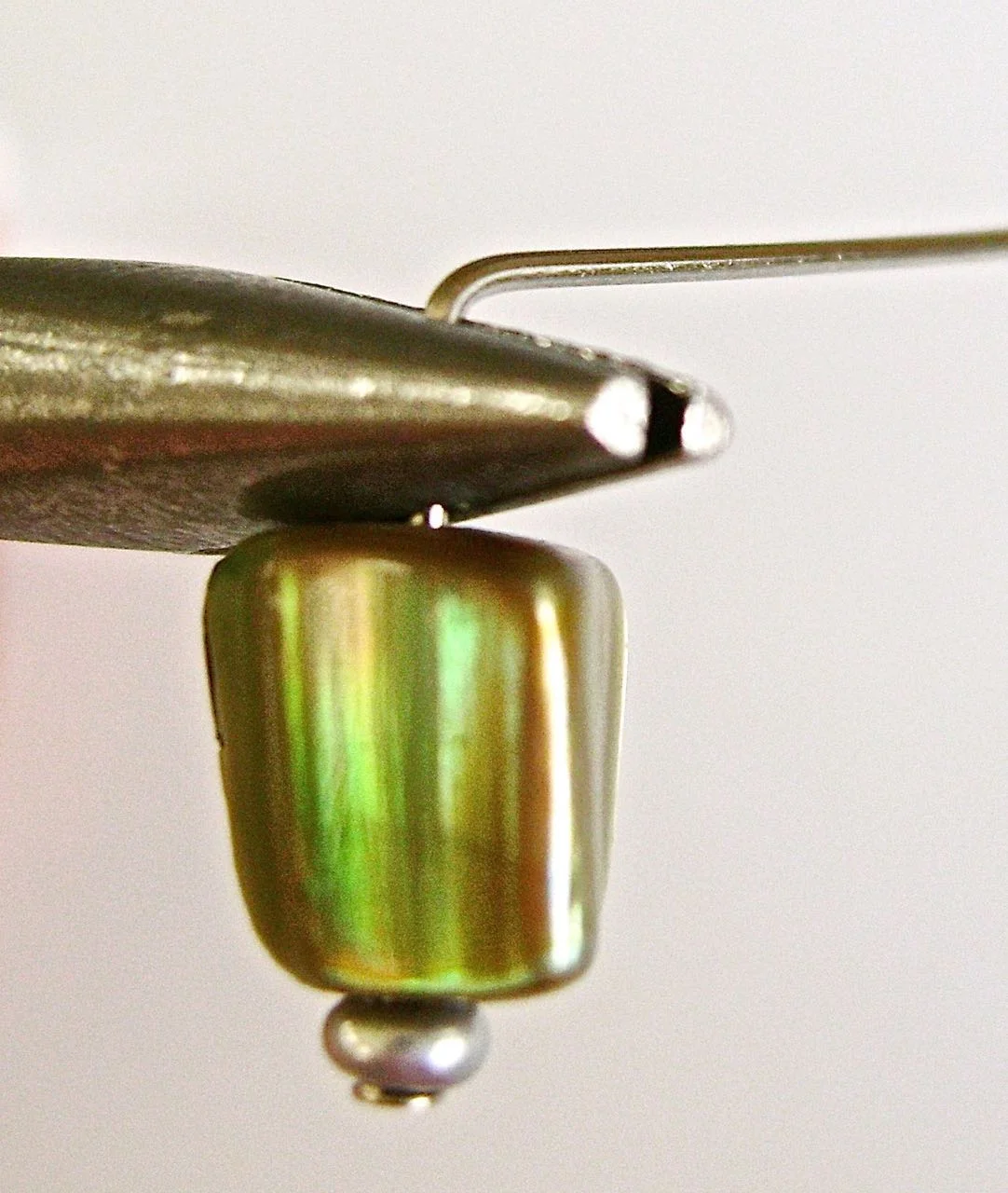

step 2 - Create a 90 degree bend in the wire by pushing against the pliers with your finger.

step 2 - Create a 90 degree bend in the wire by pushing against the pliers with your finger.

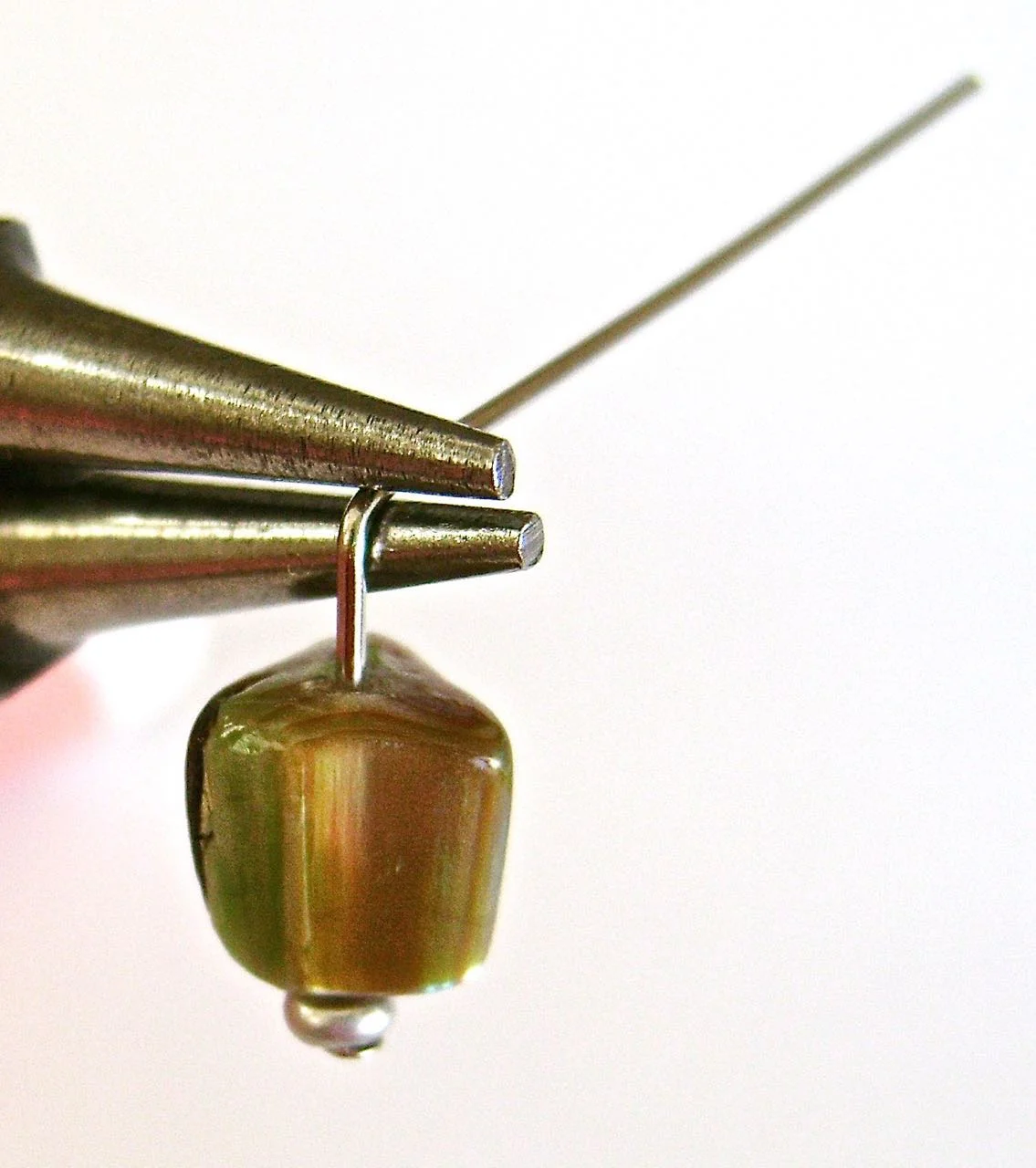

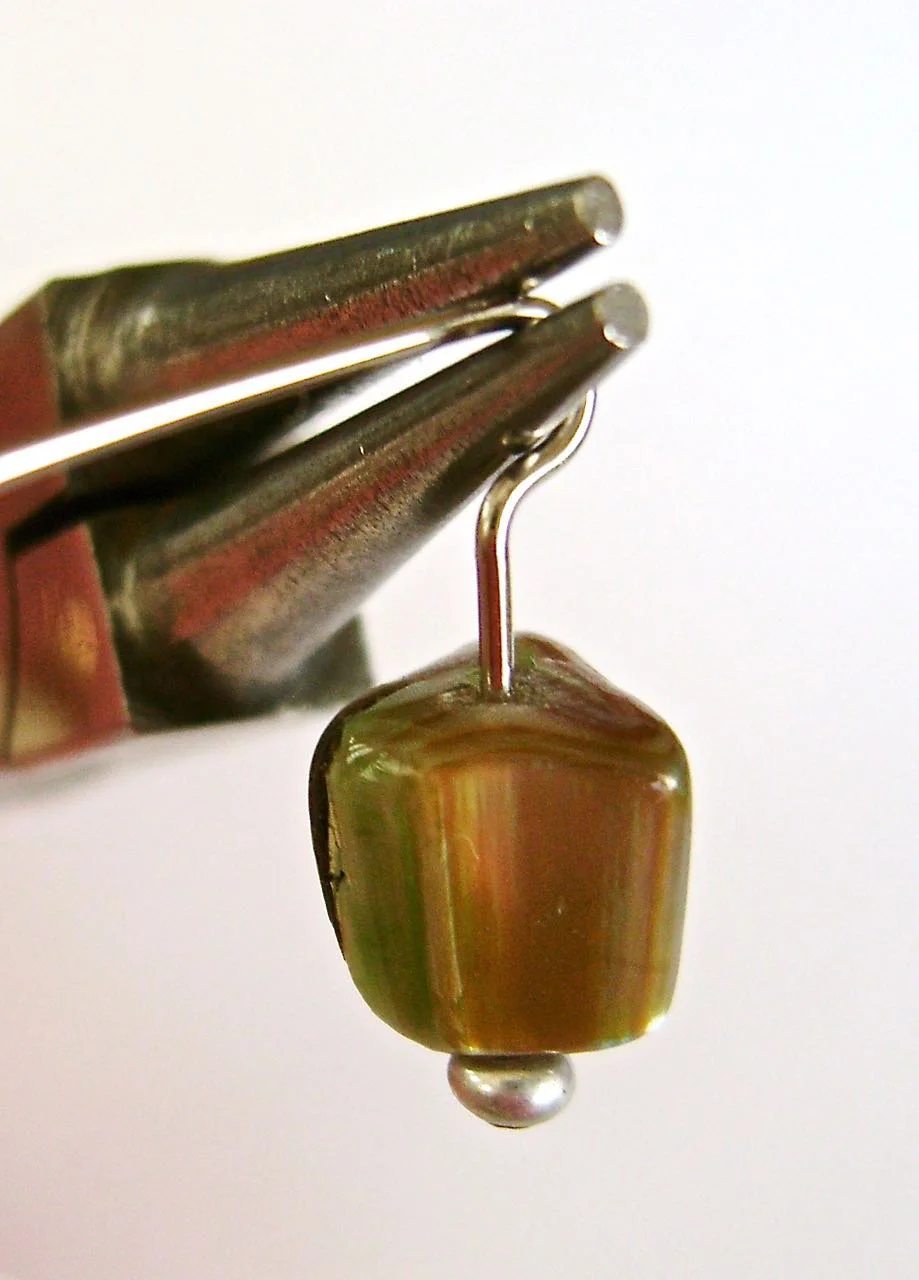

step 3 -  With round nose pliers, grasp the wire inside the angle.

step 3 -  With round nose pliers, grasp the wire inside the angle.

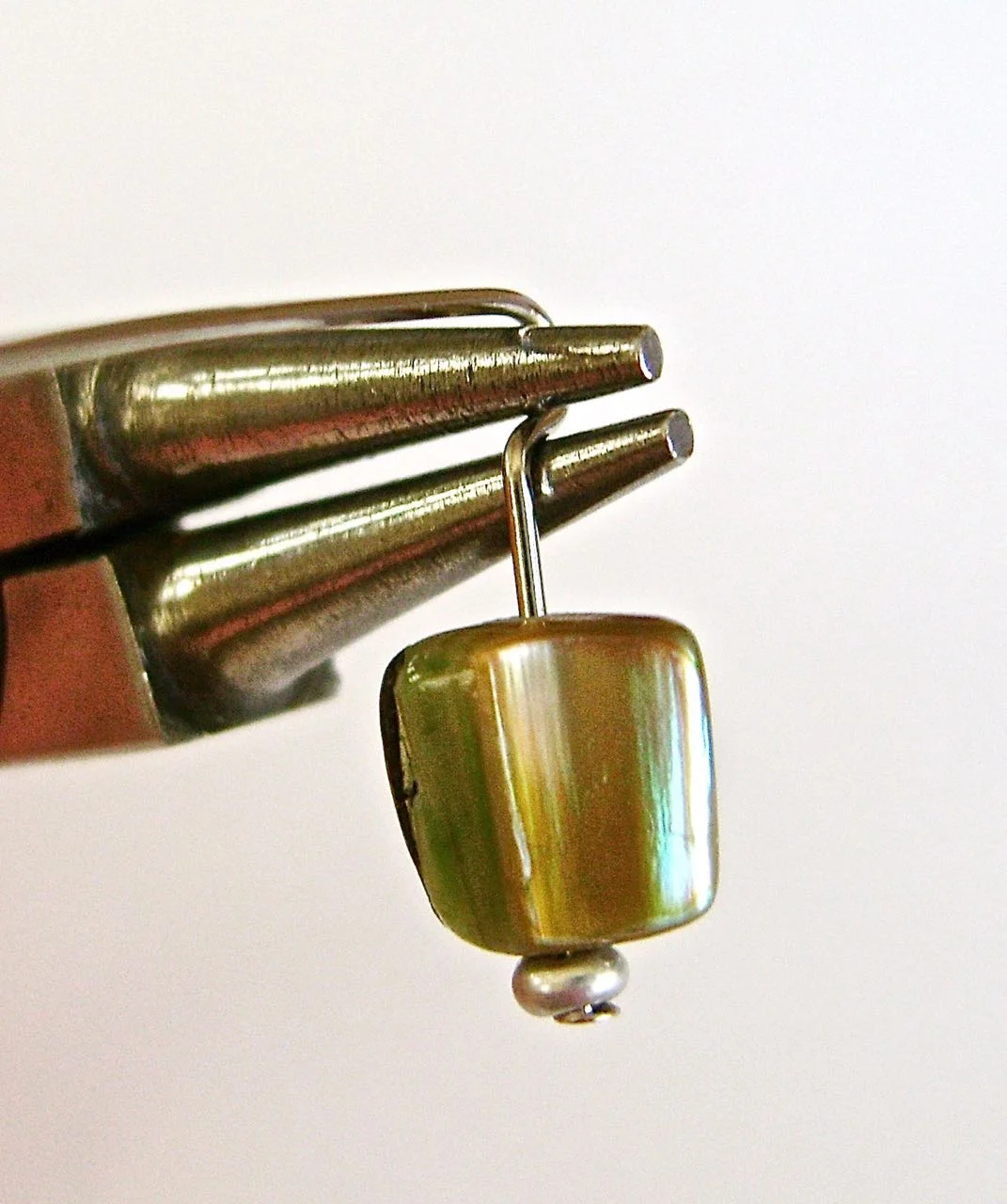

step 4 -  Bend the wire over the top of the round nose pliers using your hand.  This will create one side of your loop.

step 4 -  Bend the wire over the top of the round nose pliers using your hand.  This will create one side of your loop.

step 5 - Seat your pliers snugly into the curve you just created, grasping the top of the loop.

step 5 - Seat your pliers snugly into the curve you just created, grasping the top of the loop.

step 6 - With your hand, bend the wire straight down to curve around the shape of the bottom pliers.

step 6 - With your hand, bend the wire straight down to curve around the shape of the bottom pliers.

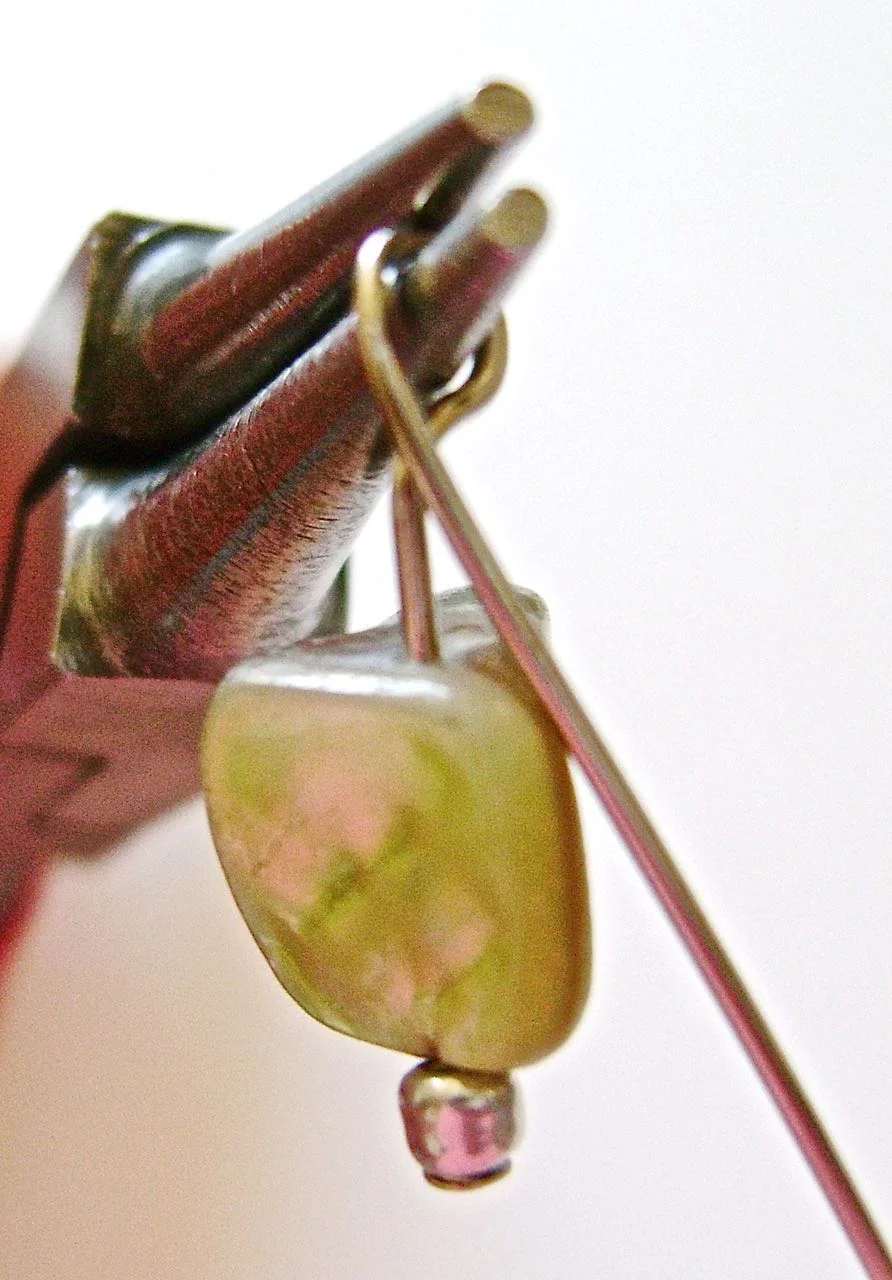

step 7 - Pull the tail of the wire past the 90 degree angle.

step 7 - Pull the tail of the wire past the 90 degree angle.

step 8 - Hold the loop securely with flat nose pliers.  Use another pair of pliers to wrap the tail around the wire.  For a better view, my photo shows the tip of the pliers at the end of the wire.  But the ideal position is to place the broader part of the pliers close to the wrap to make it easier to work with.  If you try to wrap as pictured here, you may end up with small bends in the wire.  Also, don’t try to wrap around in one motion.  Move the needle nose pliers from one side to the other as necessary.

step 8 - Hold the loop securely with flat nose pliers.  Use another pair of pliers to wrap the tail around the wire.  For a better view, my photo shows the tip of the pliers at the end of the wire.  But the ideal position is to place the broader part of the pliers close to the wrap to make it easier to work with.  If you try to wrap as pictured here, you may end up with small bends in the wire.  Also, don’t try to wrap around in one motion.  Move the needle nose pliers from one side to the other as necessary.

step 9 - When the wrap is complete, you will have a wire tail that needs to be trimmed.

step 9 - When the wrap is complete, you will have a wire tail that needs to be trimmed.

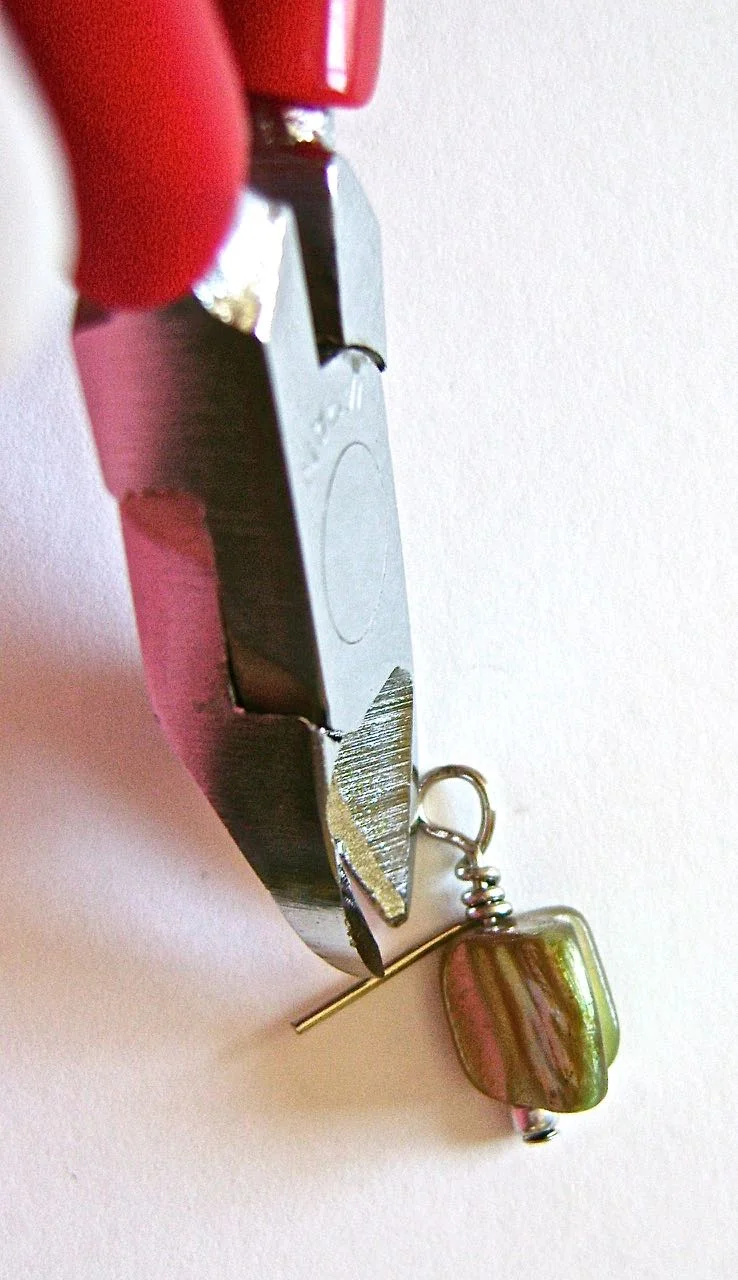

step 10 - Use wire cutters to snip off the tail as close to the wrap as possible.

step 10 - Use wire cutters to snip off the tail as close to the wrap as possible.

step 11 - Use a crimp tool or needle pliers to flatten the cut end of wire to the wrap.

step 11 - Use a crimp tool or needle pliers to flatten the cut end of wire to the wrap.



Pliers & Tools

1 - Needle Nose Pliers 2 - Round Nose Pliers 3 - Flat Nose Pliers 4 - Wire Cutters 5 - Double Crimp Tool

1 - Needle Nose Pliers
2 - Round Nose Pliers
3 - Flat Nose Pliers
4 - Wire Cutters
5 - Double Crimp Tool




Wire Spirals

Spirals are a special way to add interest to any piece of jewelry like my Purple Passion Pendant.  Combine spirals to create interesting and ornate designs.  While they may look complicated, wire spirals are simple to create.  If you plan to do a lot of this work, you might want to buy a pair of plastic nose pliers. They’re great for handling softer wire and won’t leave bite marks or strip the finish especially when creating spirals.


Grab one end of wire and make a curve with the very tip of round nose pliers.

Grab one end of wire and make a curve with the very tip of round nose pliers.

Hold the curve securely with flat nose pliers and smooth the wire into shape with your fingers.

Hold the curve securely with flat nose pliers and smooth the wire into shape with your fingers.

Work in small increments, turning with the pliers and shaping the wire against the previous curve.  Remember to curve the wire with your fingers not the pliers.

Work in small increments, turning with the pliers and shaping the wire against the previous curve.  Remember to curve the wire with your fingers not the pliers.


Necklaces And Bracelet Sizes

If you’re making jewelry for yourself, it’s pretty easy to know how large to make it.  But when you’re making a piece for someone else you can use these measurements as a rough guide.  Bracelets need to fit the wearer well so as not to easily slip off the hand.

Bracelets

Ladies Bracelet - 7” - 9”

For very petite or small boned people 6 1/2” is more appropriate. How wide the bracelet is will also affect the fit.  Generally, wide bracelets like cuffs, will fit closer than a single stranded bead bracelet on the same wrist.

Ladies Ankle Bracelet - 10”

Necklaces

Necklace sizes can vary greatly, but here are some loose guidelines:
Choker 16”
Princess 18”
Matinee Length 20”- 24”
